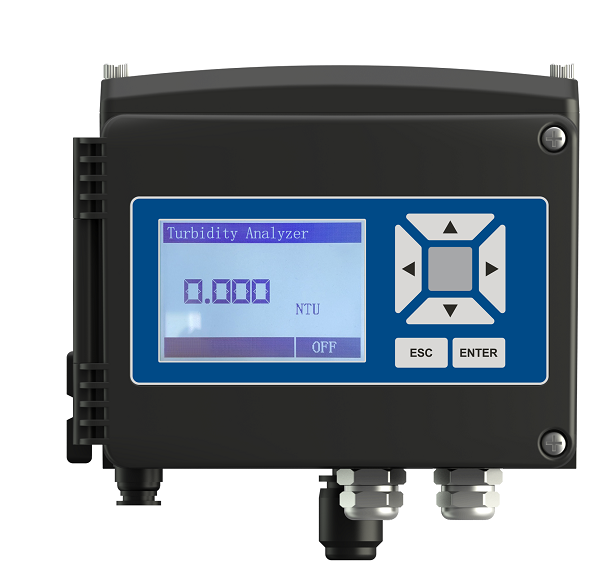

Low-Range Turbidity Analyzer
HydroMetric compact low-range turbidity analyzer is designed for continuous drinking-water and tap-water monitoring where stable low-turbidity measurement, simple integration and compact installation are required.
Technical Specifications
| Measurement principle | EPA 90° scattered-light method |
|---|---|
| Repeatability | ≤ ±2% |
| Resolution | 0.001–0.1 NTU depending on range |
| Sample flow | 200–400 mL/min |
| Calibration | Sample calibration and slope calibration |
| Display | Optional 3.5-inch LCD |
| Process connections | Ø8 quick-connect inlet, Ø12 outlet and Ø12 cleaning port |
| Main material | ASA body, PUR cable |
| Power | 9–36 VDC sensor supply; optional AC adapter |
| Analog output | 1 × 4–20 mA |
| Relay | 1 relay |
| Communication | Modbus RS485 |
| Measuring temperature | 0–45°C, non-freezing |
| Storage temperature | -15–60°C |
| Dimensions | 158 × 166.2 × 155 mm |
| Weight | 1 kg |
| Protection | IP65, indoor |
Applications
Suitable for filtered water, finished drinking water, direct-drinking systems and other low-turbidity water-quality monitoring points.
Integration & Selection
Specify available sample flow, installation space, desired display configuration and the required PLC/SCADA interface. RS485 and 4–20 mA provide straightforward integration into online monitoring panels.
Request a Quote
Send your target turbidity range, sample conditions, installation requirements and control-system interface to sales@waterqualityanalyzer.com for configuration support.
