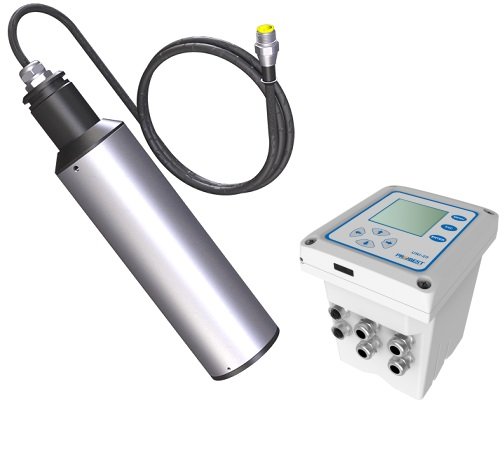

Universal Water Quality Transmitter
Single- or dual-channel universal transmitter for integrating compatible water-quality sensors with local display, analog outputs, relays and Modbus communications.
Technical Specifications
| Channels | Single or dual channel |
|---|---|
| Display | 160 × 160 LCD |
| Power | AC 85–500VAC or DC 9–36VDC |
| Analog outputs | 3 × 4–20 mA |
| Relays | 3 |
| Communication | Modbus RS485 |
| Operating temperature | -15 to 60°C |
| Protection | IP65 / NEMA4X |
| Dimensions | 145 × 125 × 162 mm |
| Weight | 1.35 kg |
Compatible Parameters
Supports compatible pH, dissolved oxygen, ORP, conductivity, turbidity, suspended solids, chlorophyll, algae, chlorine, UV COD, ammonia, nitrate, transparency and other water-quality sensors.
Applications
Standalone sensor installations, compact monitoring panels, OEM systems and retrofit projects requiring local display plus analog/digital outputs.
Request a Quote
Send the required sensor type, channel count, power and output requirements to sales@waterqualityanalyzer.com.
