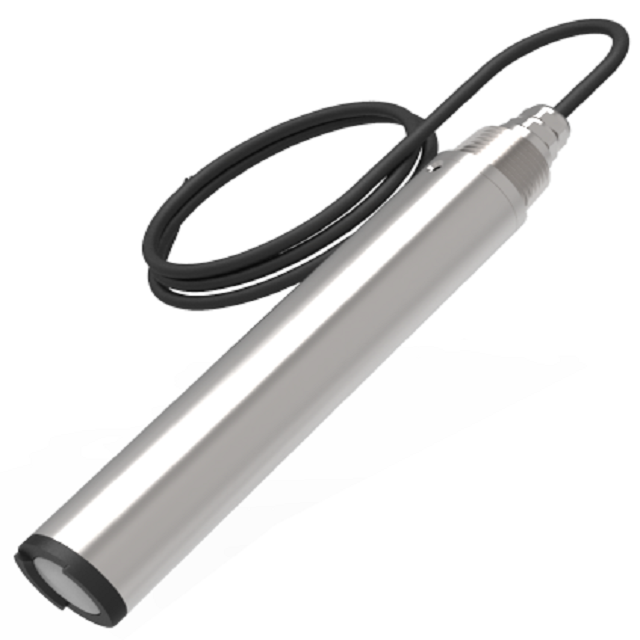

Blue-Green Algae Sensor
HydroMetric blue-green algae sensor uses fluorescence characteristics of cyanobacteria pigments for rapid in-situ monitoring. It is designed to support early bloom detection and continuous monitoring in drinking-water sources, aquaculture, surface water and other environmental programs.
Technical Specifications
| Measurement principle | Fluorescence using cyanobacteria absorption and emission peaks |
|---|---|
| Measuring range | 200–300,000 cells/mL |
| Measurement accuracy | ±10% of the signal-level value corresponding to 1 ppb Rhodamine WT dye |
| Pressure range | ≤0.4 MPa |
| Calibration | Offset/deviation calibration; slope calibration |
| Recommended turbidity condition | Below 50 NTU |
| Monitoring recommendation | Use multi-point monitoring where algae distribution is highly uneven |
| Main material | SUS316L + PVC body; POM cover; PUR cable |
| Communication | Modbus RS485 |
| Measuring temperature | 0–45°C, non-freezing |
| Sensor dimensions | Ø37 × 220 mm |
| Sensor weight | 0.8 kg |
| Sensor protection | IP68 / NEMA 6P |
| Cable | 10 m standard; up to 100 m |
Applications
- Water-treatment plant intake monitoring
- Drinking-water source monitoring
- Aquaculture
- Surface-water monitoring
- Landscape-water and pond monitoring
- Early warning for cyanobacterial bloom risk
Installation & Integration
Because cyanobacteria can be distributed unevenly, select a representative installation point and consider multiple sensors for large water bodies. Confirm whether the application is fresh water or marine and provide expected turbidity conditions.
Request a Quote
For configuration support, send the expected measuring range, water type, installation conditions, cable length and controller/PLC requirements to sales@waterqualityanalyzer.com.
