Multiparameter Water Quality Monitoring System

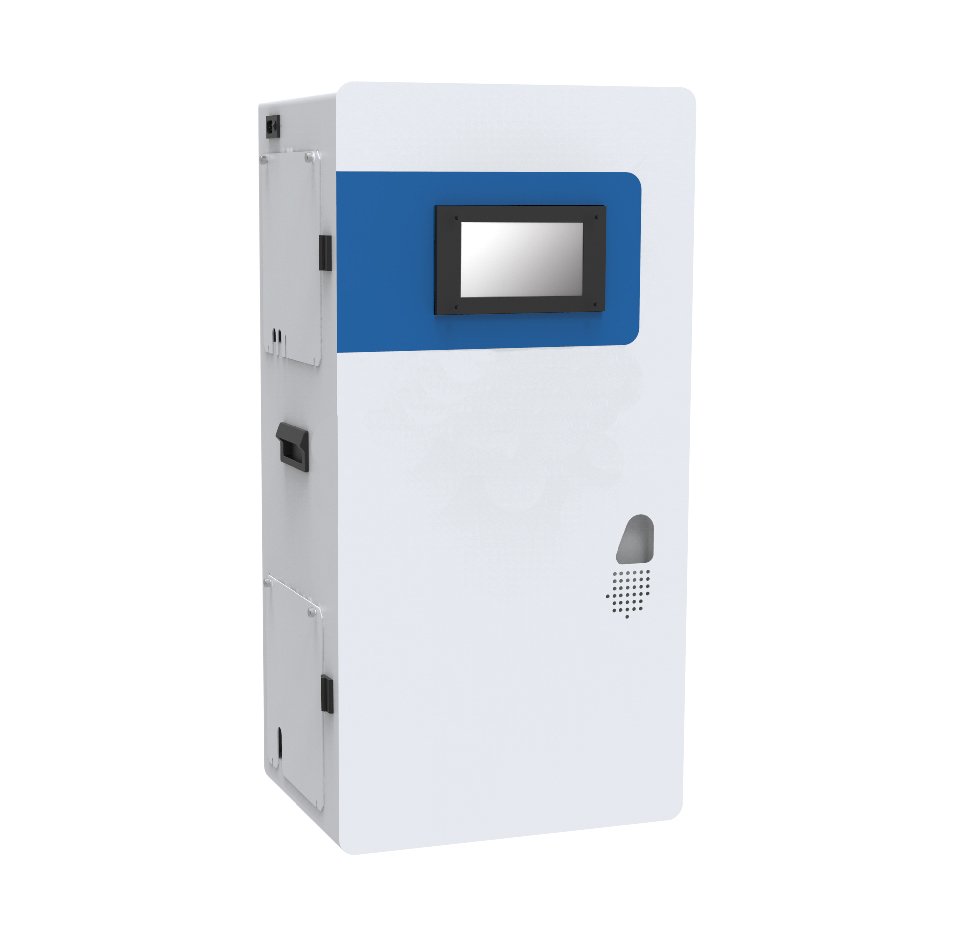

HydroMetric multiparameter water quality monitoring system integrates online water-quality sensors, internal flow piping and data-processing/control functions in a compact enclosure for continuous drinking-water and pipeline monitoring. Typical configurations monitor temperature, pH, turbidity and disinfectant indicators, with conductivity and ORP available as expansion parameters.
Technical Specifications
| Typical monitored parameters | Temperature, pH, turbidity and disinfectant indicators; expandable with conductivity and ORP |
|---|---|
| Display | 7-inch touch display with high-brightness LED backlight |
| Power supply | 220 VAC, 50/60 Hz |
| Analog outputs | 8-channel 4–20 mA |
| Relay outputs | 4 programmable relays |
| Communication | MODBUS RS485 for real-time measured-value transmission |
| Storage temperature | 0–60°C |
| Operating temperature | 0–45°C, non-freezing |
| Protection | IP54 |
| Dimensions | 340 × 450 × 900 mm |
System Design
- Integrated flow path combines sensors, data processing and internal water piping for centralized online monitoring.
- Continuous measurement supports real-time water-quality supervision in drinking-water distribution and secondary-supply systems.
- Programmable 4–20 mA outputs, relays and Modbus RS485 simplify integration with PLC, SCADA and telemetry platforms.
- Parameter configuration can be adapted to project requirements, including optional conductivity and ORP channels.
Applications
- Drinking-water distribution networks
- Secondary water-supply pump rooms
- Pipeline water-quality monitoring
- Waterworks process and outlet monitoring
- Smart water-network projects
Project Selection
For configuration, confirm the required parameter set, disinfectant parameter, expected ranges, inlet-water conditions, available installation space, signal outputs and remote communication requirements. HydroMetric can configure the system around the monitoring point and control-system interface.
Request a Quote
Send the required parameters, water source, monitoring location, communication requirements and project quantity to sales@waterqualityanalyzer.com.
