Online TOC Analyzer

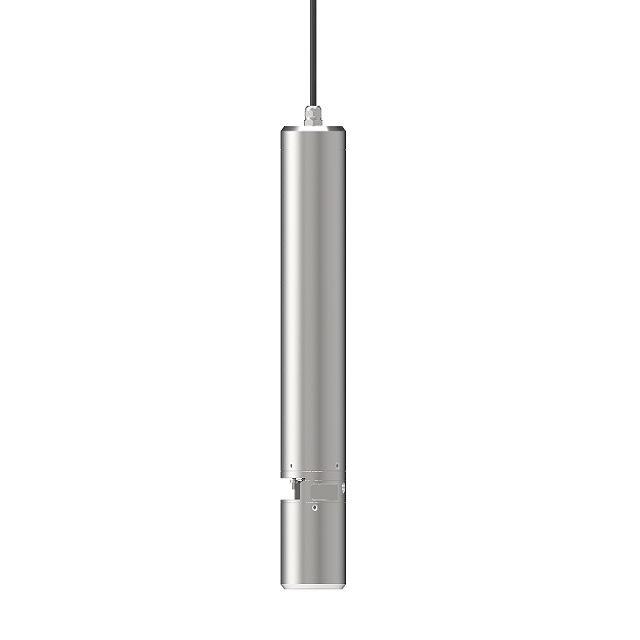

HydroMetric online organic-load analyzer uses UV254 spectrometric absorption to continuously track soluble organic matter and report TOC together with COD and BOD indicators. The direct-immersion, reagent-free design is intended for wastewater treatment, industrial effluent and surface-water monitoring where fast continuous measurements and low routine maintenance are required.
Technical Specifications
| Measurement principle | UV absorption at 254 nm (SAC254), KHP calibration |
|---|---|
| TOC ranges | 0–800 mg/L (2 mm path); 0–400 mg/L (5 mm); 0–36 mg/L (50 mm) |
| COD ranges | 0–2000 mg/L (2 mm); 0–1000 mg/L (5 mm); 0–90 mg/L (50 mm) |
| BOD ranges | 0–1500 mg/L (2 mm); 0–750 mg/L (5 mm); 0–60 mg/L (50 mm) |
| Accuracy | ±5% |
| Measurement interval | Minimum 1 minute |
| Pressure | ≤0.4 MPa |
| Sensor body | SUS316L |
| Power | 9–36 VDC or 85–500 VAC, 50/60 Hz |
| Outputs | 3 × 4–20 mA; 3 configurable relays |
| Communication | MODBUS RS485 |
| Operating temperature | 0–45 °C |
| Sensor protection | IP68 / NEMA 6P |
| Sensor dimensions | Ø69 × 380 mm |
| Cable | 10 m standard; extendable to 100 m |
Applications
Suitable for continuous organic-load monitoring at wastewater-treatment influent and effluent points, industrial wastewater discharge, surface water and other long-term water-quality stations.
Installation & Integration

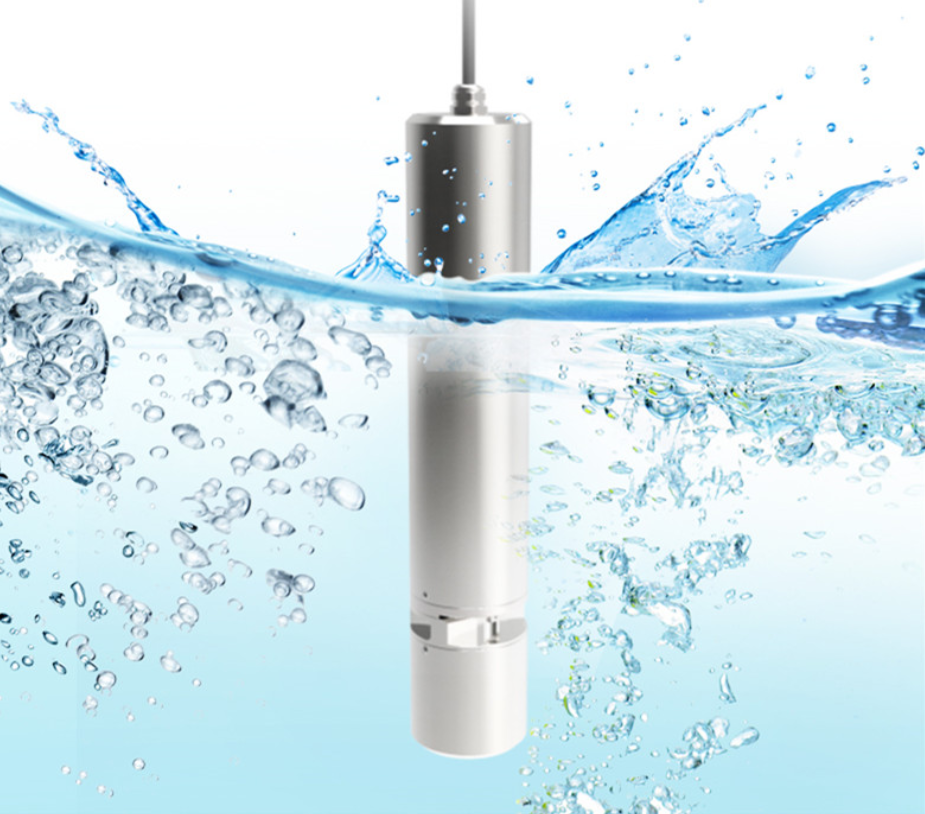

The immersion sensor eliminates routine sample transport and chemical reagent handling. Automatic optical-window cleaning helps reduce fouling. MODBUS RS485 and analog outputs support integration with PLC, SCADA, data loggers and remote monitoring platforms.
Selection Guidance
Select the optical path/range according to expected organic loading. For an RFQ, provide the target TOC/COD/BOD range, water type, installation point, cable length, available power and required communications so the configuration can be matched to the project.
Request a Quote
Send your measurement range, process conditions and integration requirements for configuration review and a project quotation. Email sales@waterqualityanalyzer.com.
