Portable Turbidity Meter
HydroMetric portable turbidity meter is designed for fast field measurement of turbidity in surface water, aquaculture, environmental surveys, research and other on-site water-quality programs. Infrared scattered-light measurement reduces interference from sample color, while the handheld platform supports convenient field operation and data handling.
Technical Specifications
| Measurement principle | Infrared scattered-light measurement with 90° detection |
|---|---|
| Measuring range | 0.1–1000 NTU |
| Accuracy | 0.1–10 NTU: ±0.3 NTU; 10–1000 NTU: ±5% |
| Resolution | 0.1 NTU |
| Response time | <30 seconds |
| Calibration | Standard calibration and water calibration |
| Sensor material | SUS316L |
| Host material | ABS + PC |
| Operating temperature | 0–40 °C |
| Storage temperature | 0–50 °C |
| Sensor size / weight | Ø24 × 135 mm / <0.25 kg |
| Portable host size / weight | 203 × 100 × 43 mm / 0.5 kg |
| Protection | Portable host IP66 |
| Cable | 3 m standard, extendable |
| Display | 3.5-inch color display with adjustable backlight |
| Data storage | 8 GB |
Applications
- Surface-water and environmental field surveys
- Aquaculture water-quality checks
- Research and university sampling programs
- Portable turbidity verification at treatment and monitoring sites
Field Operation & Integration

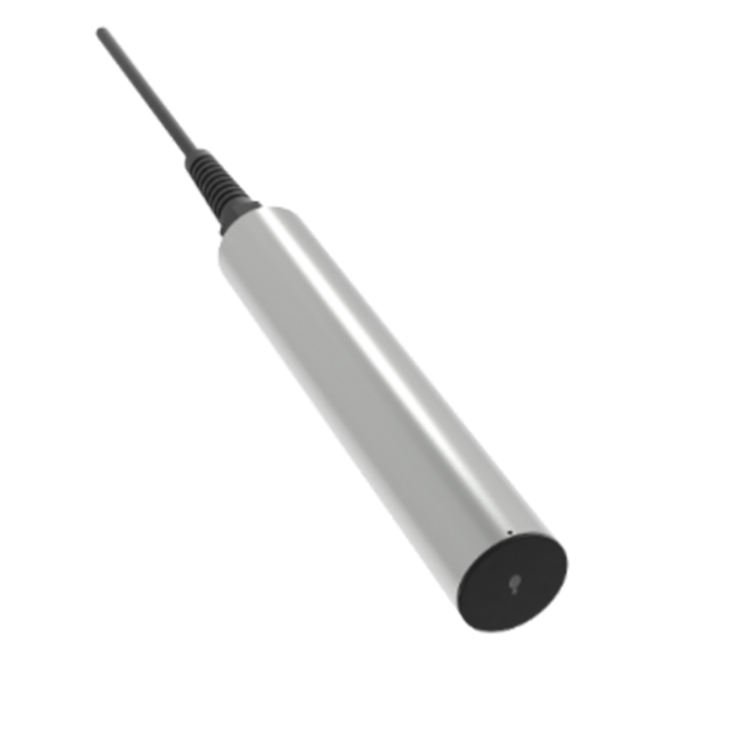

The handheld unit is intended for wet field environments and supports USB charging and data export. The digital probe connects to the portable host for rapid on-site testing. Factory calibration supports quick deployment, while on-site calibration is available when required by the monitoring program.
Selection Guide
For an RFQ, provide the expected turbidity range, water type, required cable length, field-use frequency and any data-export requirements. For continuous unattended monitoring rather than spot measurements, request an online turbidity configuration.
Send your application, water type, target measuring range and quantity. HydroMetric can recommend a suitable portable turbidity configuration for engineering, monitoring and OEM projects. Email sales@waterqualityanalyzer.com.
