Portable Oil-in-Water Meter

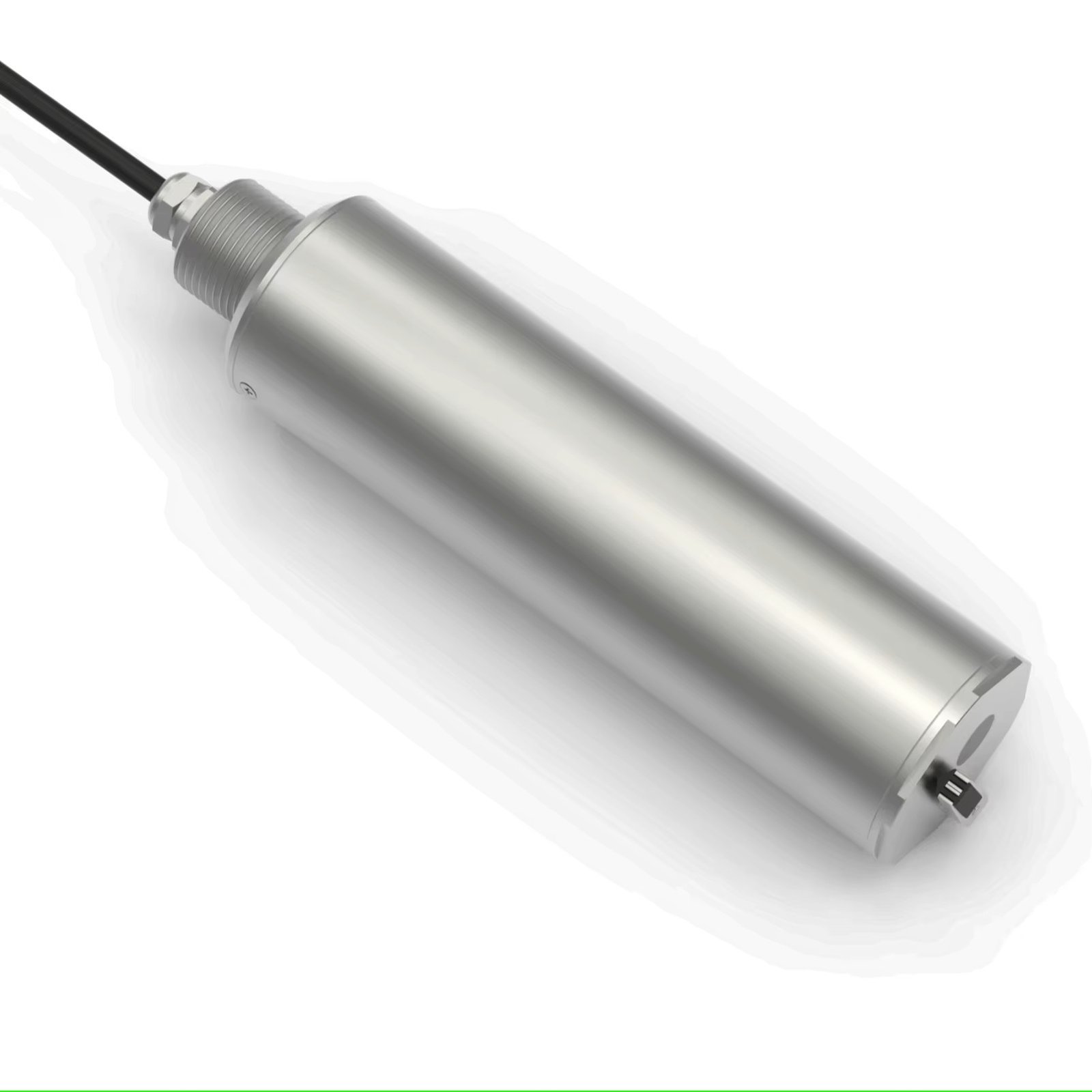

HydroMetric portable oil-in-water meter combines a handheld PMI800 platform with a UV-fluorescence oil probe for rapid field testing of mineral-oil contamination in wastewater, surface water, groundwater and drinking-water source monitoring.
Technical Specifications
| Measurement principle | UV fluorescence |
|---|---|
| Measurement range | 0–50 mg/L |
| Resolution | 0.01 mg/L |
| Accuracy | ±10% of measured value or ±0.3 mg/L, whichever is greater |
| Repeatability | ±5% |
| Probe pressure | ≤0.4 MPa |
| Probe materials | SUS316L standard; titanium-alloy option for seawater; PUR cable |
| Cleaning | Automatic scraper cleaning |
| Probe protection | IP68 / NEMA6P |
| Portable display | 3.5-inch color display |
| Data storage | More than 100,000 records / 8 GB platform storage |
| Charging / export | USB charging and data export |
| Portable host protection | IP67 |
Applications
Field oil-pollution surveys, petrochemical wastewater checks, environmental enforcement, surface-water and groundwater monitoring, drinking-water source inspection and emergency spill response.
Selection Guidance
Confirm expected oil concentration, water matrix, whether seawater-compatible materials are required, cable length and field logging requirements.
Request a project quotation
Send your application and expected oil range to sales@waterqualityanalyzer.com.
