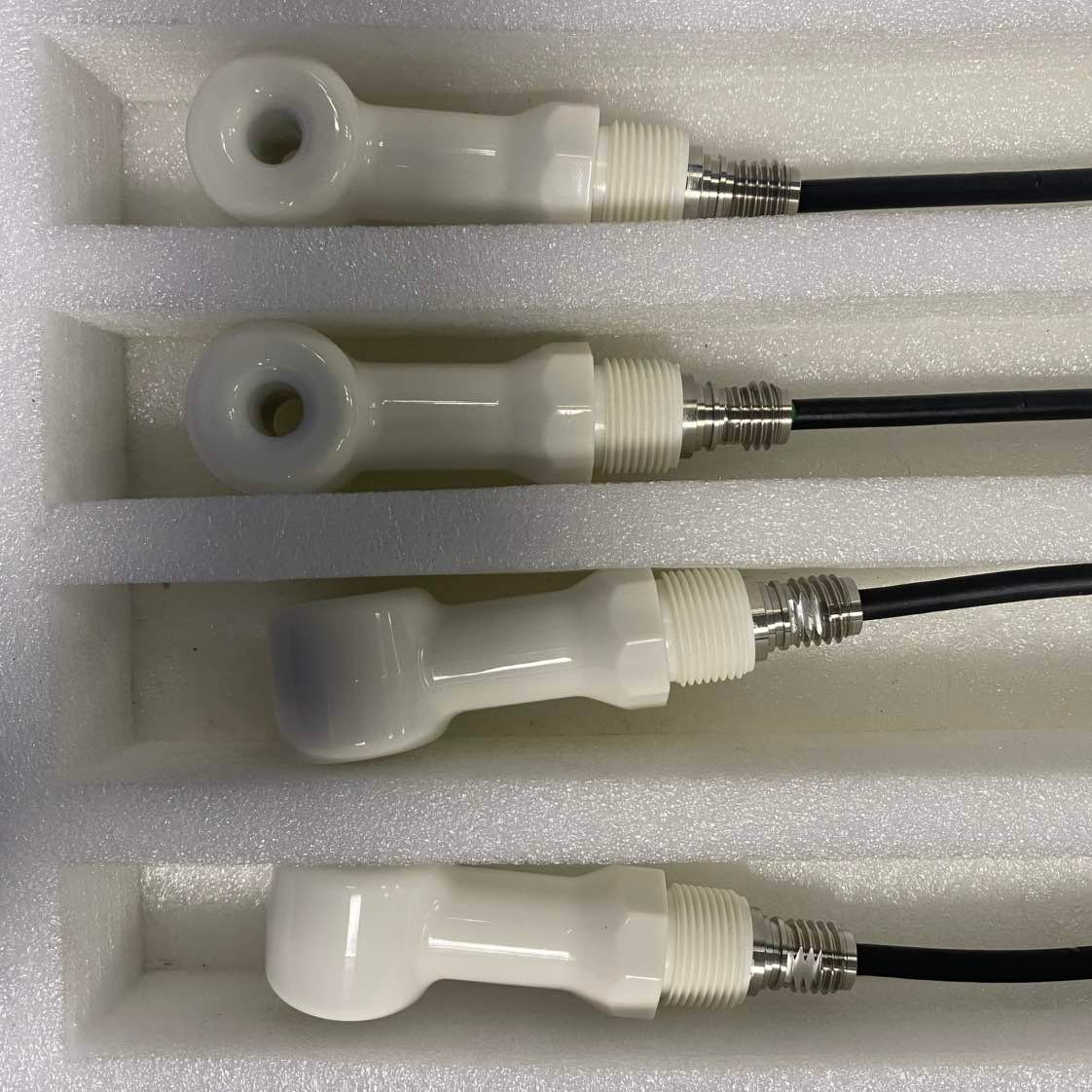

Inductive Conductivity Sensor
Electrode-free inductive conductivity sensor for corrosive, fouling and high-conductivity process liquids where conventional contacting electrodes are less suitable.
Technical Specifications
| Measurement principle | Inductive / electrode-free conductivity |
|---|---|
| Range | 0–2000 mS/cm |

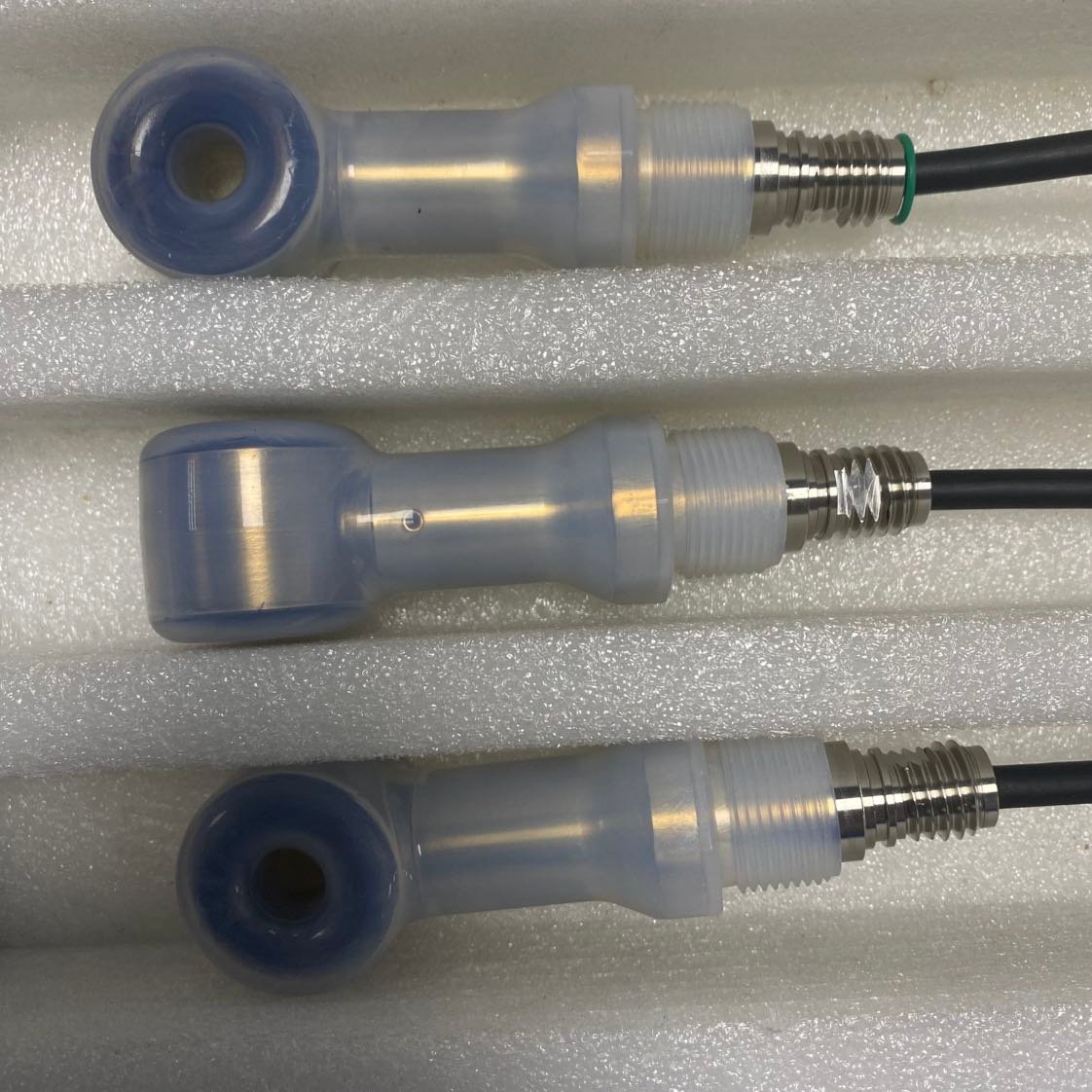

| Wetted materials | PP or PFA |
| Chemical resistance | Suitable across pH 0–14 |
| Temperature | PFA version up to 120°C |
| Accuracy | ±1.0% FS |
| Repeatability | ≤1% |
| Communication | RS485, Modbus RTU |
| Protection | IP68 |
| Installation | Flange, insertion, submersible, flow-through, tee or threaded |
Applications
Industrial wastewater, chemical process streams, high-conductivity liquids and installations where coating or corrosion makes electrode sensors difficult to maintain.
Selection & Integration
Confirm conductivity range, process chemistry, temperature, wetted material preference and installation method before ordering.
Request a Quote
Email project requirements to sales@waterqualityanalyzer.com.
