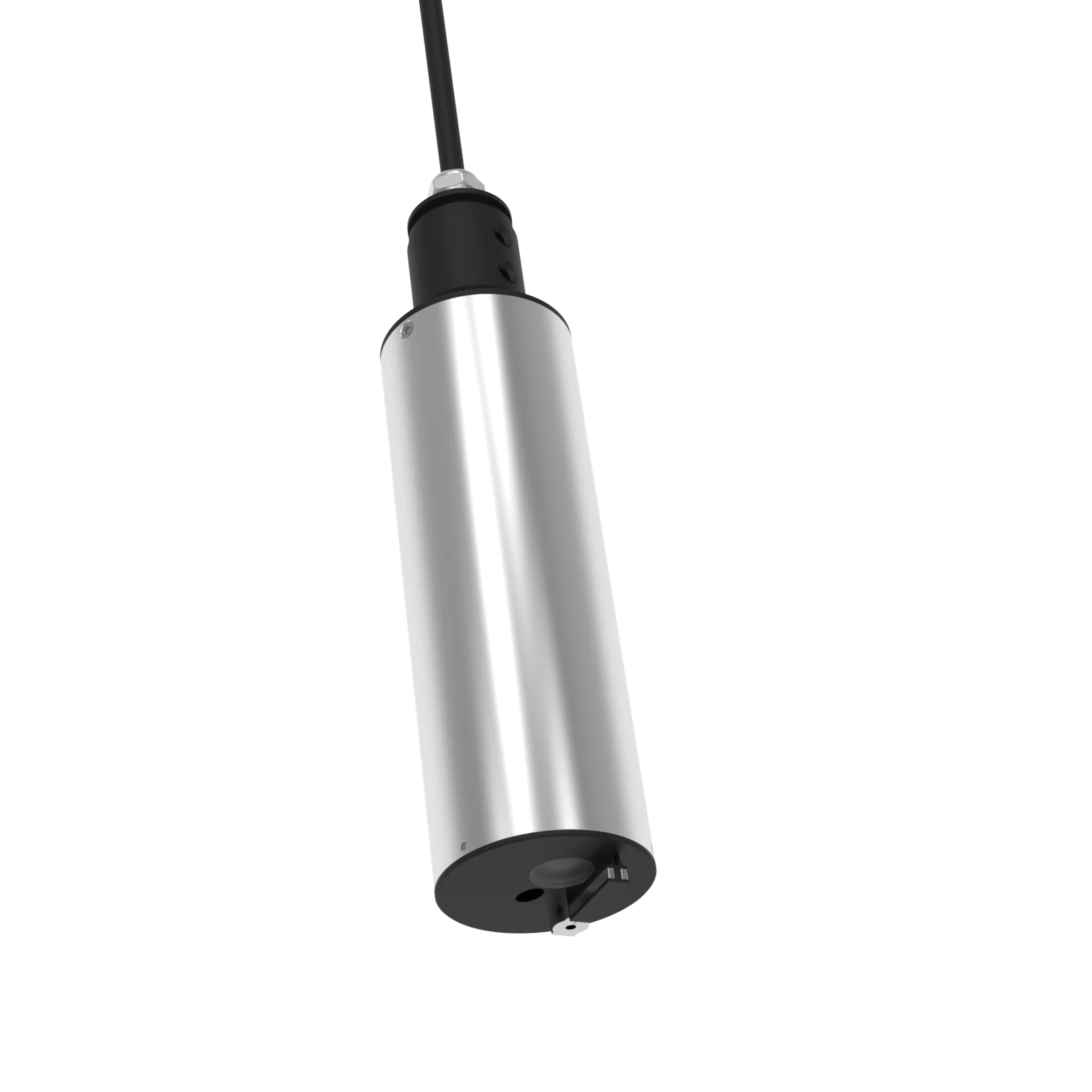

Suspended Solids Sensor
HydroMetric suspended-solids sensor uses a combined infrared absorption and scattered-light method for continuous TSS and sludge-concentration monitoring. It is suited to wastewater treatment processes, industrial water systems and discharge monitoring where stable digital measurement and low-maintenance operation are required.
Technical Specifications
| Measuring ranges | 0.01–1000 mg/L; 100–50,000 mg/L |
|---|---|
| Measurement accuracy | < ±10% of measured value or 10 mg/L, whichever is greater; depends on sludge homogeneity |
| Repeatability | ±3% |
| Resolution | 0.01–1 mg/L depending on range |
| Pressure range | ≤0.4 MPa |
| Calibration | Sample calibration; slope calibration |
| Sensor material | SUS316L body for fresh water; PUR cable |
| Communication | Modbus RS485 |
| Power | 9–36 VDC sensor/system option; controller configurations also available |
| Measuring temperature | 0–45°C, non-freezing |
| Sensor dimensions | Ø49 × 230.5 mm |
| Sensor weight | 0.8 kg |
| Sensor protection | IP68 / NEMA 6P |
| Cable | 10 m standard; up to 100 m |
| Cleaning | Optional automatic cleaning brush |
Applications
- Sludge concentration in wastewater treatment processes
- Industrial process-water suspended-solids monitoring
- Wastewater-treatment TSS monitoring
- Sewage-plant outlet monitoring
- Municipal pipe-network and pollution-source discharge monitoring
Installation & Integration

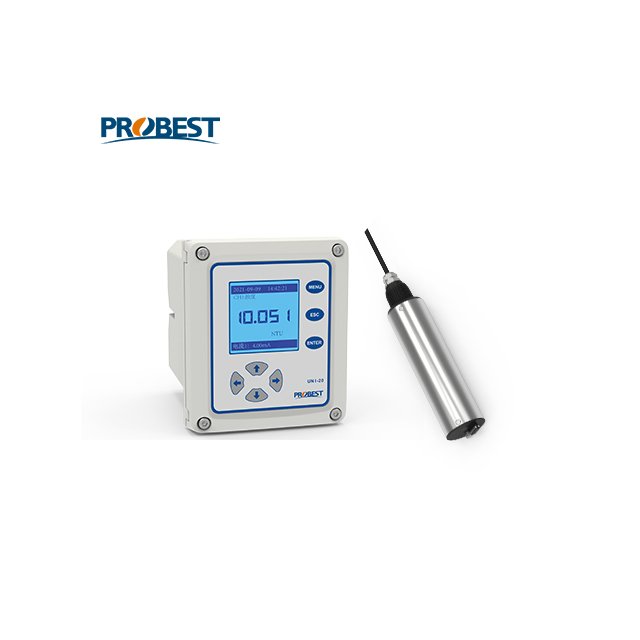

Select the measuring range according to expected solids concentration and sludge characteristics. Position the sensor where solids are representative and avoid stagnant pockets. Specify cleaning requirements, cable length and whether a transmitter with 4–20 mA/relay outputs is required.
Request a Quote
Send your water matrix, expected measuring range, installation conditions, cable length and controller/PLC requirements to sales@waterqualityanalyzer.com for configuration support.
