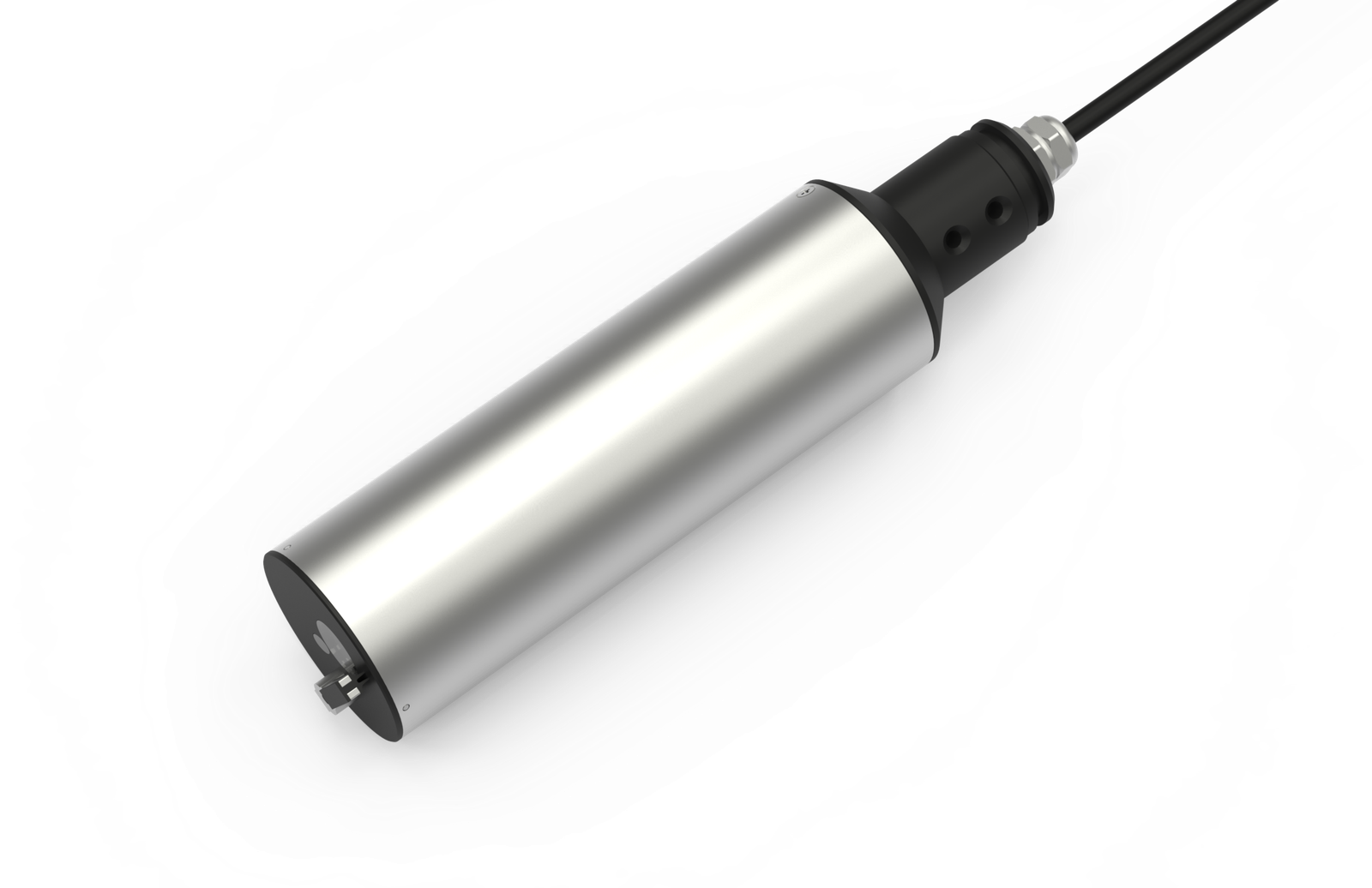

Water Transparency Sensor
HydroMetric digital transparency sensor for continuous in-situ water clarity monitoring. The sensor combines infrared absorption and scattering measurement to convert the received optical signal into a transparency value for long-term online monitoring.
Technical Specifications
| Measurement principle | Combined infrared absorption and scattering |
|---|---|
| Measurement range | 2–100 cm |
| Accuracy | ±0.3 cm or ±5% of reading |
| Pressure range | ≤0.4 MPa |
| Maximum flow velocity | ≤2.5 m/s |
| Communication | MODBUS RS485 |
| Analog output | 3 × 4–20 mA |
| Relay output | 3 programmable relays |
| Power supply | 85–500 VAC or 9–36 VDC |
| Operating temperature | 0–45°C, non-freezing |
| Storage temperature | -15–50°C |
| Sensor dimensions | Ø60 × 254 mm |
| Sensor weight | Approx. 1.65 kg |
| Protection | Sensor IP68 / NEMA 6P; transmitter IP66 / NEMA 4X |
| Cable | 10 m standard, extendable to 100 m |
| Cleaning | Optional automatic cleaning brush |
Applications
Designed for continuous transparency monitoring in surface water, urban rivers, lakes, reservoirs and aquaculture. Transparency is also a useful indicator for monitoring black and odorous water bodies and changes in suspended or colored material.
Installation & Integration
The digital RS485 interface supports direct system integration. For project selection, provide the expected transparency range, water-body type, flow conditions, mounting depth, cable length and whether automatic cleaning is required.
Request a Quote
Contact HydroMetric with the monitoring location and installation conditions for sensor configuration, integration guidance and B2B quotation. Email sales@waterqualityanalyzer.com.
