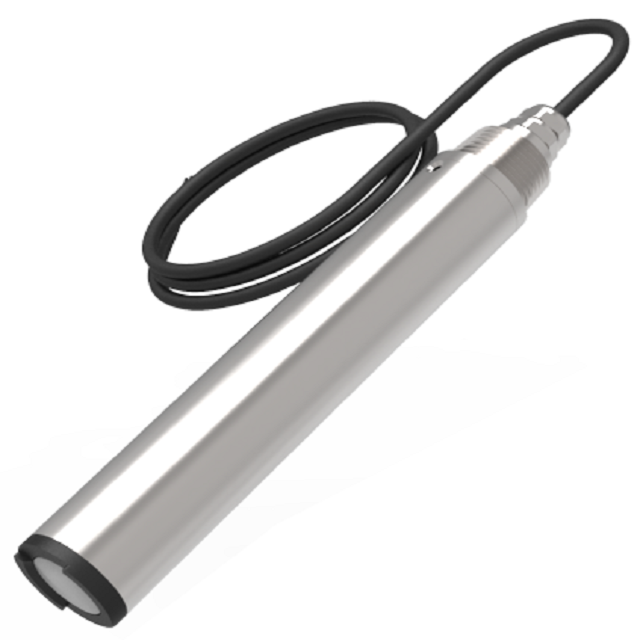

Online Chlorophyll Sensor
HydroMetric chlorophyll sensor uses in-situ fluorescence to estimate chlorophyll-a concentration for rapid online monitoring without sample extraction. It is suited to source-water, aquaculture, surface-water and marine monitoring where early indication of phytoplankton activity is important.
Technical Specifications
| Measurement principle | Fluorescence based on chlorophyll-a absorption/emission characteristics |
|---|---|
| Measuring range | 0–500 µg/L |
| Measurement accuracy | ±5% of the signal-level value corresponding to 1 ppb Rhodamine WT dye |
| Pressure range | ≤0.4 MPa |
| Calibration | Offset/deviation calibration; slope calibration |
| Recommended turbidity condition | Below 50 NTU for best fluorescence monitoring |
| Main material | SUS316L for fresh water; titanium-alloy option for marine service; POM cover; PUR cable |
| Communication | Modbus RS485 |
| Measuring temperature | 0–45°C, non-freezing |
| Sensor dimensions | Ø37 × 220 mm |
| Sensor weight | 0.8 kg |
| Sensor protection | IP68 / NEMA 6P |
| Cable | 10 m standard; up to 100 m |
Applications
- Water-treatment plant intake monitoring
- Drinking-water source monitoring
- Aquaculture
- Surface-water and reservoir monitoring
- Landscape-water monitoring
- Seawater and coastal monitoring with suitable material selection
Installation & Integration
Fluorescence signals can vary with algae distribution and water matrix. Use representative placement and, where blooms are spatially uneven, consider multi-point monitoring. Confirm water type and required material before ordering.
Request a Quote
For configuration support, send the expected measuring range, water type, installation conditions, cable length and controller/PLC requirements to sales@waterqualityanalyzer.com.
