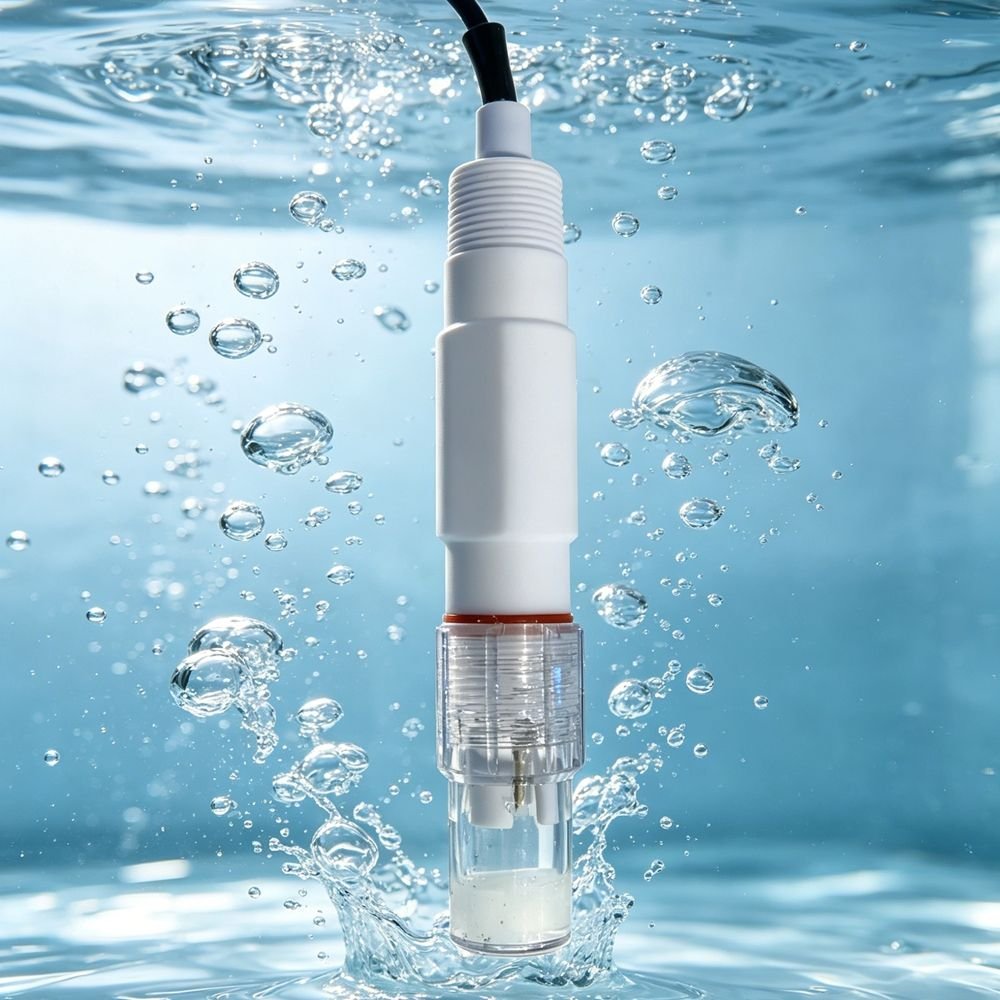

Industrial pH Sensor for Harsh Water
Industrial pH sensor for continuous monitoring in demanding water and process applications, with temperature compensation, submersible protection and multiple temperature versions for project selection.
Technical Specifications
| Measurement range | 0–14 pH |
|---|---|
| Temperature versions | Standard 0–100°C; high-temperature 0–130°C; low-temperature -15–80°C |
| Pressure | 0–3 bar operating; 8 bar maximum |
| Temperature compensation | PT1000 |
| Slope | >95% |
| Zero potential | 7 ±0.25 pH |
| Response time | <30 s |
| Protection | IP68 |
| Cable | 10 m standard; up to 50 m |
Applications
Industrial wastewater, process water, treatment systems and other continuous pH monitoring points requiring a rugged immersion sensor.
Selection & Integration
Specify the expected pH range, process temperature, pressure, installation method, cable length and controller/interface requirements when requesting a configuration.
Request a Quote
Send your application conditions and quantity to sales@waterqualityanalyzer.com.
